Votrax · Analog formant / phoneme synthesis · 1980
SC-01 / SC-01A
The phoneme voice behind talking robots, home-computer accessories, and some of the most memorable machines of the early 1980s.
Overview
The Votrax SC-01 creates speech by combining small speech sounds rather than replaying recordings of complete words. Introduced at the beginning of the 1980s, this 22-pin CMOS chip brought an electronic model of the vocal tract into a single integrated circuit. With suitable programming, its small repertoire could form new words, sentences, and even deliberately nonsensical voices. The SC-01 and revised SC-01A became recognizable voices in computer peripherals, robotics, arcade games, and pinball.
Compare the Votrax family, interfaces, and voices →
Image gallery
Find an SC-01 or SC-01A for your collection
Look for SC-01 and SC-01A chips, boards, and documentation. Check the part number and condition in each listing.
Search eBay for SC-01 / SC-01ASC-01 versus SC-01A: a refined voice
The SC-01A (also marked SC-01-A) is a voice refinement of the SC-01, retaining its 22-pin package, basic interface, and phoneme-code repertoire. After examining both chips’ internal ROMs, reverse-engineer Jonathan Gevaryahu reported changes to parameters for a few phonemes, apparently intended to improve sound quality and remove some DC bias. MAME likewise uses the same synthesizer implementation with separate phoneme ROM images. The documented distinction is therefore in the sound parameters, rather than a new programming architecture. Their voices need not sound identical.
From a screw manufacturer to a talking chip
Votrax grew out of the speech work of Richard T. Gagnon and the vocal division of Federal Screw Works. Its earlier synthesizers used larger assemblies; the SC-01 condensed phoneme synthesis into a single chip. The 1980 datasheet still identifies Votrax as a division of Federal Screw Works in Troy, Michigan. This unusual industrial background helped produce a voice that would become familiar far beyond the factory.
Unlimited vocabulary does not mean text-to-speech
The chip has 64 selectable codes, including the PA0 and PA1 pauses and a STOP code. They are selected through six data inputs, P0–P5. Several codes represent related versions of a speech sound, so the repertoire should not be mistaken for 64 different English letters. Words are assembled from pronunciation, not spelling: a program must choose the appropriate sound sequence and pauses. The SC-01 has no built-in English dictionary or spelling parser. A system such as the Type N Talk supplies the text-conversion software outside the chip. A fixed-message product can instead store prepared phoneme sequences in an ordinary external ROM.
An electronic vocal tract

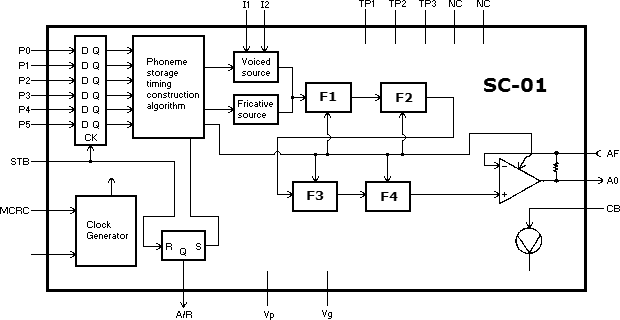

The SC-01 is an analog formant synthesizer. Voiced excitation supplies the periodic energy associated with vocal-fold vibration, while noise excitation supplies the hiss needed for unvoiced consonants. Controlled filters shape those sources into speech sounds. A formant is a resonance that helps distinguish one vowel from another; moving the filter settings changes the effective shape of this electronic vocal tract. The internal phoneme memory holds control parameters rather than recordings of someone speaking. Modern reverse engineering, reflected in MAME’s circuit simulation, models separate voice and noise paths, multiple filter stages, closure control, and a final output filter. Its 512-byte phoneme ROM is a compact collection of sound recipes, not a vocabulary of stored words.
Why the transitions matter
In speech, the mouth keeps moving as one sound becomes another. Simply placing isolated sounds next to one another can lose those movements. The Votrax design changes its control values progressively between phonemes, producing intermediate states as the electronic vocal tract moves toward its next sound. Gagnon’s patent describes digital transition circuitry that gradually updates stored parameter values. This is an important part of the chip’s character and intelligibility, although it does not make its voice a natural human recording. Pronunciation, timing, and stress still depend on the phoneme sequence supplied by the programmer.
Four pitch levels—and a clock that changes the whole voice
Two inflection inputs, I1 and I2, select four pitch levels for voiced sounds. Software can change them through an utterance to introduce emphasis or a rising or falling pitch. The master clock offers another way to alter the voice. The datasheet specifies 720 kHz for standard phoneme timing and provides both an internal RC oscillator and an external-clock option. Reducing the clock frequency lowers the audio frequencies and lengthens phonemes; increasing it raises the voice and speeds it up. Clock adjustment therefore changes speech rate and voice character together. It is distinct from selecting the four inflection levels.
Programming the SC-01
The controller places a six-bit phoneme code on P0–P5 and pulses STB; the data is latched on the rising edge. The acknowledge/request output, A/R, goes low to acknowledge the request and returns high when the phoneme’s timing interval has finished. A controller can poll it or use it to request the next code through an interrupt. Six phoneme lines, a strobe, and the request line provide the basic eight-signal interface when inflection is held fixed. Two more controlled signals allow programmed pitch changes. The chip is not a sentence buffer: the surrounding electronics or software must keep feeding it codes. Its datasheet advertises only about 70 bits per second for continuous speech, a strikingly small control-data requirement.
From stored messages to a conversational peripheral
The manufacturer illustrates several ways of building a talking product. In the simplest, a counter steps through phoneme codes held in ROM, paced by A/R. Multiple messages can occupy separate ROM blocks. A microprocessor provides a more flexible arrangement, choosing phonemes as a program runs and converting text when suitable software is available. An external message ROM is therefore optional storage for what to say. It is different from the chip’s internal phoneme-parameter ROM, which defines how its sounds are synthesized.
The output is analog
AO is an analog audio output with a DC bias. It needs an appropriate coupling and amplifier circuit to drive a loudspeaker. The chip also supplies AF, an audio-feedback connection, and CB, a current source used in the datasheet’s transistor amplifier arrangements. This is a mixed-signal device: digital inputs command an analog speech-generating circuit. Its audio output should not be described as a digital PWM speaker signal. Likewise, latched inputs described as 5-volt logic compatible do not mean the complete chip is a modern 5-volt-only part; the supply, inflection inputs, and A/R output must be handled according to the relevant electrical specifications.
The later SC-02 / SSI-263
The SC-02, also known as the SSI 263, belongs to a later generation. It adds programmable registers and much more control over speech parameters, with a different package and pinout. It is a related voice technology rather than a drop-in replacement for SC-01 or SC-01A. The SP0256-AL2 and TMS5220 use different synthesis architectures; their encoded speech data and programming interfaces are not interchangeable with Votrax phoneme codes.
A voice with a personality
The same chip family could speak a carefully programmed sentence or become a character voice. Type N Talk translated computer text into phoneme sequences. The HERO speech card gave a robot an electronic voice. Q*bert used speech hardware for expressive gibberish, while Black Hole used intelligible spoken lines. The samples below let you hear these very different applications. The short “Defender” and “Robots” clips are spoken-word demonstrations; their titles alone do not identify a particular game or robot.
Building and preserving the voice
Keeping an SC-01 system speaking requires its complete signal chain: valid phoneme and strobe timing, the correct clock, an appropriate supply, and the audio amplifier. The phonetic dictionary is especially useful when reproducing a historical phrase because it supplies prepared pronunciation sequences. Steve Ciarcia’s September 1981 BYTE project and the two-part Microvox project in September and October 1982 show how enthusiasts turned the chip into practical computer speech hardware. His March 1984 third-generation project belongs to the later SSI 263. Chip Talk and the Circuit Cellar books provide further routes into hands-on speech synthesis.
The SC-01 interface at a glance
| Connection | Purpose |
|---|---|
| P0–P5 | Six-bit phoneme selection |
| STB | Rising-edge data latch |
| A/R | Acknowledge / request for the next phoneme |
| I1, I2 | Four voiced-pitch levels |
| MCRC, MCX | Internal RC oscillator or external clock |
| AO | Analog audio output |
| AF, CB | Connections for the recommended amplifier circuits |
Hear the Type N Talk
“The juice of lemons makes fine punch. A box was thrown beside the parked truck.”
Hear Q*bert
Q*bert’s expressive, speech-like gibberish.
Hear Ugg
Ugg’s complaining voice from Q*bert.
“Defender”
A short spoken-word demonstration.
“Robots”
A short spoken-word demonstration.
Hear Black Hole
“Do you dare to enter the black hole?” — Gottlieb, 1981.
Documentation and downloads
Machines using the SC-01 family
These exhibits use SC-01 or SC-01A hardware. Some product families changed synthesizers between models; their individual pages explain those differences.
The Alien Group
Voice Box
The Alien Group’s Atari speech peripheral used a Votrax SC-01-A, pronunciation dictionaries, and an SIO connection to make the television speak.
Explore Voice Box
Sweet Micro Systems
Mockingboard
Sweet Micro Systems’ Apple II sound-card family combined music and effects with optional SC-01 or SSI 263 phoneme speech.
Explore Mockingboard
Alpha Products
VS-100
Alpha Products’ TRS-80 speech accessory used Votrax SC-01 phonemes, with text-to-speech software and programmable BASIC output.
Explore VS-100
Heathkit

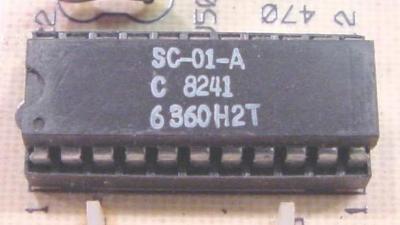

HERO 1 Speech Card
Heathkit’s ET-18-2 voice option gave HERO 1 phoneme-based speech through a Votrax SC-01-A synthesizer.
Explore HERO 1 Speech CardMicromint
Sweet Talker Parallel
Micromint’s Votrax SC-01 phoneme interface for parallel-port projects.
Explore Sweet Talker ParallelMicromint
Sweet Talker Apple II
Micromint’s Apple II speech card using Votrax SC-01 phoneme synthesis.
Explore Sweet Talker Apple IIGottlieb
Gottlieb System 80 Sound & Speech Board
Gottlieb’s MA-216 / B-20887 board combined game sound with Votrax SC-01 phoneme speech.
Explore Gottlieb System 80 Sound & Speech BoardMicrovox Text-to-Speech Synthesizer
Microvox Text-to-Speech Synthesizer for RS232.
Explore Microvox Text-to-Speech SynthesizerContinue exploring
Further references
- Jonathan Gevaryahu: SC-01 versus SC-01A ROM examination, quoted in Dale Grover’s technical resources
- Richard T. Gagnon: speech synthesis and transition-control patent US4264783
- Olivier Galibert / MAME: SC-01 and SC-01A circuit simulation and separate phoneme ROM definitions
- Steve Ciarcia: Build an Unlimited-Vocabulary Speech Synthesizer, BYTE, September 1981, p. 38
- Steve Ciarcia: Microvox Part 1, BYTE, September 1982, p. 64
- Steve Ciarcia: Microvox Part 2, BYTE, October 1982, p. 40
